Time after which the blockage photo sensor triggers the ERROR 21: Blockage.
Available since version v1.43g

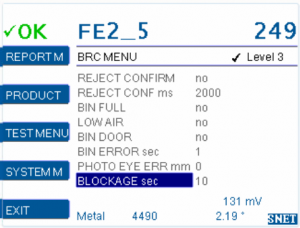

Sets the time the blockage photo sensor beam has to be permanently interrupted before ERROR 21 BLOCKAGE is triggered.
The error resets automatically after the photo sensor beam is free for more than 3 seconds.
BLOCKAGE sec. can be set only if any of the digital inputs in IN/OUT MENU is set to blockage.
BLOCKAGE is in other literatures also called product jam.
Default: 10 seconds
Range: 1-99 seconds
Since 1.51f22
Range: 0-99 seconds
