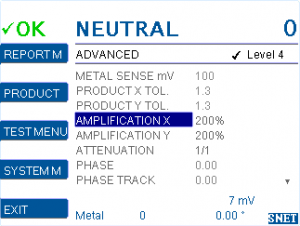

Hardware amplification factor for the product effect (X / Y channel)
The larger the product effect is, the smaller the AMPLIFICATION X / Y value has to be. 3% is the smallest hardware amplification.
When using product memories 1 – 120: AMPLIFICATION X / Y is set automatically during teach process according to the following rule:
Very strong product effect amplitude = AMPLIFICATION X / Y 3%
Low product effect amplitude = AMPLIFICATION X / Y 200%
Default: set during teach process
Range: 3%, 6%, 12%, 25%, 50%, 100%, 200%, 400% and 800%
