Interface

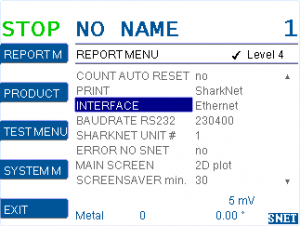

INTERFACE

INTERFACE sets the output for the data. Options are:

RS232	Sends data via RS232
Ethernet	Sends data via optional Ethernet or WLAN to PC

Default: RS232

BAUDRATE RS232

BAUDRATE RS232 sets the speed of the RS232 interface.

Default: 9600
Range: 9600/19200/57600/115200/230400/460800/921600

SHARKNET UNIT #

SHARKNET UNIT # sets the address of the controller when it is part of a SHARKNET®.

Default: 1
Range: 0-64

ERROR NO SNET

yes causes ERROR 24 NO SHARKNET if the connection to SHARKNET PC is lost for more than 30 seconds.

The parameter is greyed out and set to no, if PRINT is not set as SHARKNET.

Default: no
