Time until automatically turning off the backlight of the LCD display.
Available since version V1.42m20

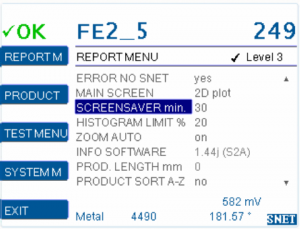

Turning off the LCD backlight extends the lifetime of the LCD display. It is recommended to set SCREENSAVER min. = 30 minutes. The backlight will turn off when this time has elapsed since last keypress.
SCREENSAVER min. = 0 never turns off the backlight.
Backlight automatically turns on when a key is pressed, or any of these inputs becomes activate:
input IN/OUT MENU > IN = external teach normal
input IN/OUT MENU > IN = external teach quick
input IN/OUT MENU > IN = CIP
Default: 30min
Range: 0 – 480min
