Adds a tolerance range around the product effect. The tolerance range prevents false alarms from irregular products.

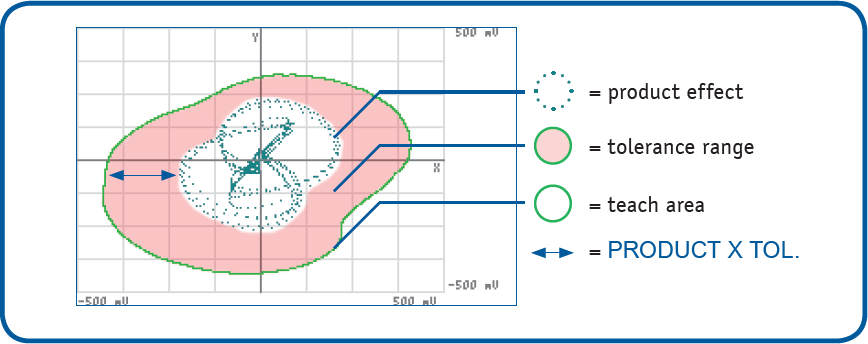

Increasing PRODUCT X TOL. increases the teach area at the X-axis.
PRODUCT X TOL. is automatically added as a factor to the result of the teach assistant. It is not altered by the teach assistant. Thus, it allows to preset a larger tolerance range than the teach assistant automatically considers.

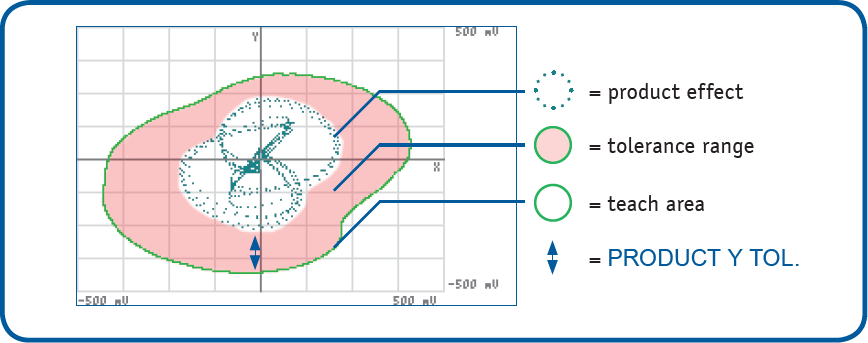

Increasing PRODUCT Y TOL. increases the teach area at the Y-axis.
PRODUCT Y TOL. is automatically added as a factor to the result of the teach assistant. It is not altered by the teach assistant. Thus, it allows to preset a larger tolerance range than the teach assistant automatically considers.
Default: 1.0
Range: 0.1 – 99.9
